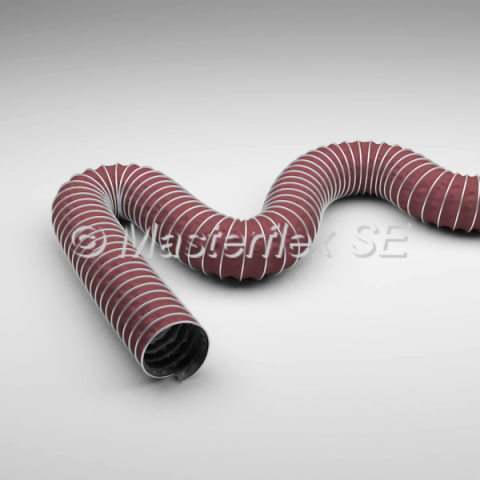

Master-Clip VITON®

Application

  • extraction of aggressive media at medium temperatures
  • low pressure applications
  • chemical plants
  • paint-spray extraction

Properties

  • high temperature resistance
  • excellent chemical resistance
  • UV and ozone resistant
  • continually kink proof
  • highly flexible
  • extremely compressible ca. 1:6
  • small bend radius
  • vibrationproof
  • tearproof
  • external steel helix protects against abrasion
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
Chemical Resistance

Recommended Connecting Elements:


Index Number: 12.3

Product Description

Medium and high temperature hose for temperatures up to +210 °C

Material

hosewall: Viton® coatedpolyesterfabric

external helix: galvanised steel

Temperature Range

  • -25°C up to +210°C
  • intermittent to +240°C

Construction

  1. external helix
  2. hose wall: Viton® coated polyester fabric
