Master-Clip HT 450

Application

  • diesel engine test beds with raised extraction speed
  • flue gas exhaust
  • hot air
  • suction plants
  • vehicle construction
  • engine construction
  • aircraft industries
  • defence industries
  • general engineering
  • low pressure applications

Properties

  • primarily suited as suction hose
  • very good temperature resistance
  • hardly inflammable
  • high resistance to mechanical loadings
  • vibrationproof
  • abrasion resistant
  • very flexible
  • axial compressible
  • small bend radius
  • good vacuum characteristics
  • silicone free
  • external steel helix protects against abrasion
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
  • RoHS compliant



Chemical Resistance

Recommended Connecting Elements:


Index Number: 12.10

Product Description

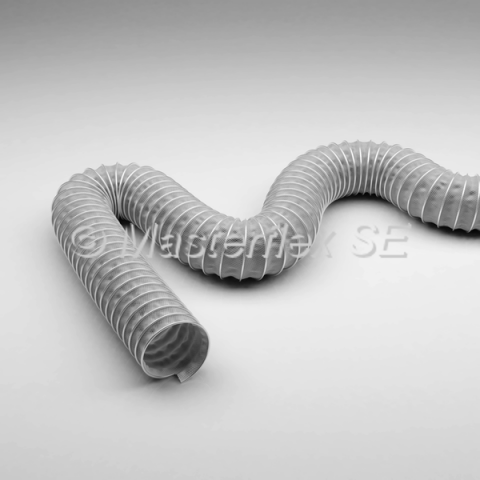

Suction hose for exhaust gas temperatures up to +450 °C, two layers

Material

hose wall: two layer construction, inner layer heat resistant impregnated glass fabric and outer layer special coated, high temperature fabric, reinforced by woven in stainless steel wire

external helix: galvanised steel

Temperature Range

  • -20°C up to +450°C
  • intermittent to +500°C

Construction

  1. external helix hose wall:
  2. outside special coated, high temperature fabric, reinforced by woven in stainless steel wire
  3. inside: heat resistant impregnated glass fabric.
