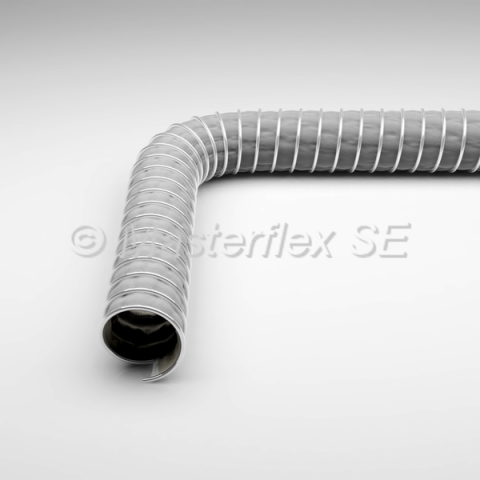

Master-Clip HT 1100


  • extremely high temperatures
  • exhaust fume extraction from large engines
  • extraction under stray sparks
  • shipbuilding industries
  • vehicle and aircraft construction
  • engine construction and suction plants
  • aircraft and defence industries
  • general engineering
  • furnace construction
  • iron and steel works
  • exhaust fume extraction from high performance test beds in the motor vehicle industries
  • extraction of aircraft engine fumes
  • radiant heat protection


  • very high temperature resistance
  • flame resistant and non flammable
  • silicone free
  • flexible
  • small bend radius
  • conditionally suitable for continuall flexing
  • external steel helix protects against abrasion
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
  • RoHS compliant
Chemical Resistance

Recommended Connecting Elements:

Index Number: 12.15

Product Description

Medium and high temperature hose for temperatures up to +1100 °C


hose wall: three layer construction inner layer: stainless steel wire fabric middle layer: therm textile fabric outer layer: heat stabilized high temperature fabric, reinforced by woven in stainless steel wire

external helix: stainless steel (1.4512)

Temperature Range

  • -20°C up to +1100°C


  1. external helix hose wall:
  2. inside: stainless steel wire fabric
  3. outside: heat stabilized high tempe- rature fabric, reinforced by woven in stainless steel
  4. middle layer: therm textile fabric
