Master-Clip SPARK

Application

  • extraction of welding fumes
  • air conditioning/ventilation
  • exhaust equipment
  • ducting and extraction of air
  • in areas with raised safety requirements
  • tent heating
  • extraction of soldering fumes
  • low pressure applications

Properties

  • largely resistant to stray sparks
  • hardly inflammable
  • good resistance to mechanical damage
  • highly flexible
  • extremely compressible ca. 1:6
  • small bend radius
  • external steel helix protects against abrasion
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
  • RoHS compliant
Chemical Resistance

Recommended Connecting Elements:


Index Number: 10.8

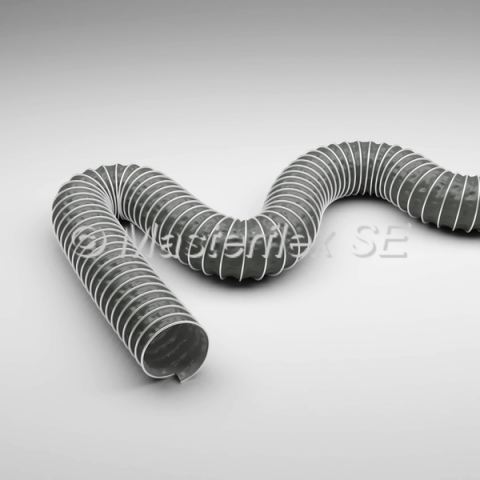

Product Description

special hose for the extraction of welding fumes made from PVC coated glass fabric

Material

hose wall: PVC coated glass fabric, hardly inflammable

external helix: galvanised steel

Temperature Range

  • -20°C up to +90°C
  • intermittent to +110°C

Construction

  1. external helix
  2. hose wall: PVC coated glass fabric, hardly inflammable
