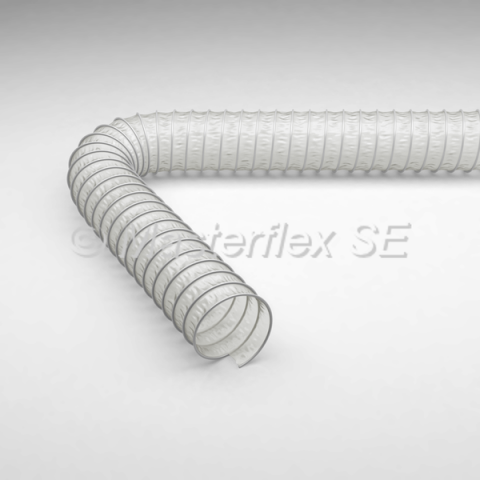

Master-Clip PUR-S


  • extraction of abrasive media
  • bottling plant
  • low pressure applications


  • improved abrasion resistance by the use of two layer hose wall
  • good resistance to mechanical damage
  • good resistance to oil and petrol vapours
  • highly resilient
  • resitant to ageing
  • resistant to low temperatures
  • very flexible
  • extremely compressible ca.1:6
  • small bend radius
  • external steel helix protects against abrasion
  • environmentally sound alternative to PVC
  • much higher temperature rating than PVC hoses
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
  • RoHS compliant
Chemical Resistance

Recommended Connecting Elements:

Index Number: 10.7

Product Description

suction/blower hose made from PU film, highly abrasion resistant, two layer construction


hose wall: polyurethane film, free from plastici- zers, two layer construction

external helix: galvanised steel

Temperature Range

  • -40°C up to +90°C
  • intermittent to +125°C


  1. external helix
  2. hose wall: polyurethane film, wall thickness 2 x ca. 0.3 mm
