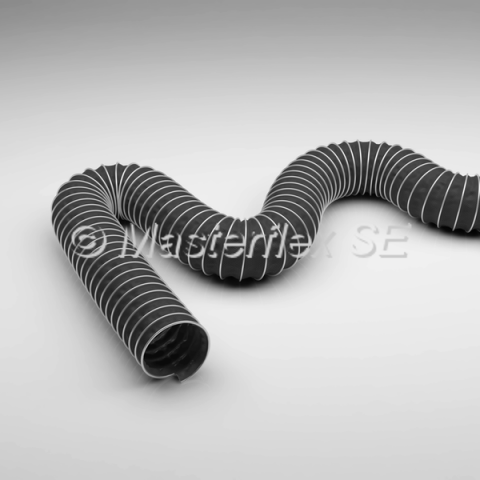

Master-Clip VINYL EL

Application

  • endangered areas, where electrical conductivity acc. to ATEX is required
  • under high mechanical stress
  • extraction of corrosive media, explosive gases and vapours
  • suction plants
  • low pressure applications
  • ventilation and suction in explosion protection areas

Properties

  • surface resistivity RO < 106 Ohm
  • outer hose wall of robust material
  • good resistance to mechanical damage
  • highly flexible
  • vibrationproof
  • extremely compressible ca. 1:6
  • small bend radius
  • external steel helix protects against abrasion
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 0, 20) suitable for combustible dusts and gases. Clip ends shall be earthed at both sides to ensure static dissipation (see register no. 28.12)
  • Construction is qualified for application in 94/9/EC - zone 0/20 (ATEX)
  • RoHS compliant



Chemical Resistance

Recommended Connecting Elements:


Index Number: 10.2

Product Description

suction and blower hose made from PVC coated polyester fabric, electr. conductive < 106 Ohm

Material

hose wall: PVC coated polyester fabric, electrically conductive < 106 Ohm

external helix: galvanised steel

Temperature Range

  • -20°C up to +70°C
  • intermittent to +80°C

Construction

  1. external helix
  2. hose wall: PVC coated polyester fabric, electrically conductive < 106 Ohm
