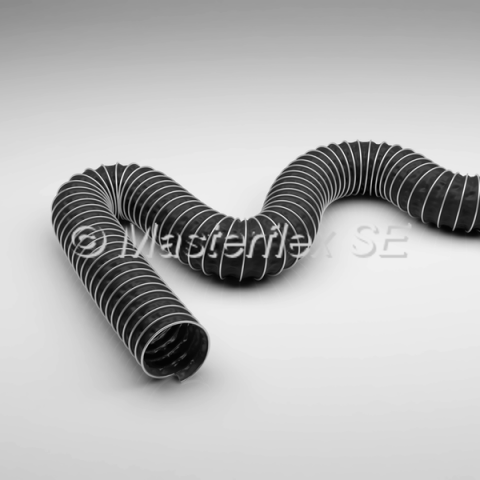

Master-Clip VITON® EL

Application

  • endangered areas, where electrical conductivity acc. to ATEX is required
  • extraction of aggressive media at medium temperatures
  • chemical plants
  • paint spray extraction
  • low pressure applications

Properties

  • Construction is qualified for application in 94/9/EC - zone 0/20 (ATEX)
  • surface resistivity RO < 104 Ohm
  • excellent chemical resistance
  • high temperature resistance
  • UV and ozone resistant
  • continually kink proof
  • highly flexible
  • extremely compressible ca. 1:6
  • small bend radius
  • vibrationproof
  • tear resistant
  • external steel helix protects against abrasion
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 0, 20) suitable for combustible dusts and gases. Clip ends shall be earthed at both sides to ensure static dissipation (see register no. 28.12)
Chemical Resistance

Recommended Connecting Elements:


Index Number: 14.5.1

Product Description

Suction and blower hose for corrosive media up to +210 °C, electr. conductive < 104 Ohm

Material

hose wall: Viton® coated polyester fabric, electrically conductive < 104 Ohm

external helix: galvanised steel

Temperature Range

  • -25°C up to +210°C
  • intermittent to +240°C

Construction

  1. external helix
  2. hose wall:Viton® coated polyester fabric, electr. conductive <104 Ohm
