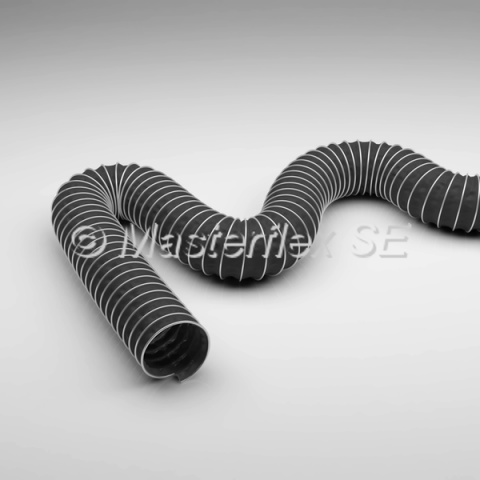

Master-Clip VINYL EL
Application
- endangered areas, where electrical conductivity acc. to ATEX is required
- under high mechanical stress
- extraction of corrosive media, explosive gases and vapours
- suction plants
- low pressure applications
- ventilation and suction in explosion protection areas
Properties
- surface resistivity RO < 106 Ohm
- outer hose wall of robust material
- good resistance to mechanical damage
- highly flexible
- vibrationproof
- extremely compressible ca. 1:6
- small bend radius
- external steel helix protects against abrasion
- special clamping method guarantees high tensile strength between hose material and external helix
- acc. to TRBS 2153 (zone 0, 20) suitable for combustible dusts and gases. Clip ends shall be earthed at both sides to ensure static dissipation (see register no. 28.12)
- Construction is qualified for application in 94/9/EC - zone 0/20 (ATEX)
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
14.0
Product Description
suction and blower hose made from PVC coated polyester fabric, electr. conductive < 106 Ohm
Material
hose wall: PVC coated polyester fabric, electrically conductive < 106 Ohm
external helix: galvanised steel
Temperature Range
- -20°C up to +70°C
- intermittent to +80°C
Construction
- external helix
- hose wall: PVC coated polyester fabric, electrically conductive < 106 Ohm
