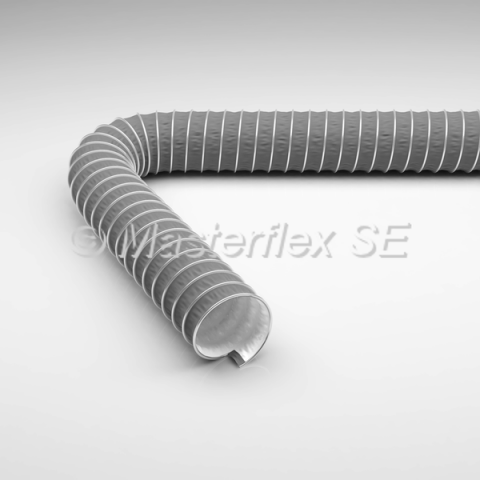

Master-Clip TEFLON® S

Application

  • extraction of corrosive media
  • chemical plants
  • paint mist extraction
  • paint, wood and paper industries
  • extraction of solvents
  • pharmaceutical industry
  • low pressure applications

Properties

  • excellent chemical resistance
  • PTFE is harmless for health
  • heat and cold resistant
  • excellent weather resistance
  • highly flexible
  • compressible ca. 1:4
  • small bend radius
  • outer hose wall of robust material
  • inner hose wall with non stick surface
  • optimum flow characteristics
  • external steel helix protects against abrasion
  • special clamping method guarantees high tensile strength between hose material and external helix acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
  • RoHS compliant
Chemical Resistance

Recommended Connecting Elements:


Index Number: 14.7

Product Description

Suction and blower hose for corrosive media up to +250 °C

Material

hose wall: inner layer: PTFE film, outer layer: silicone coated glass fabric

external helix: galvanised steel

Temperature Range

  • -70°C up to +250°C
  • intermittent to +270°C

Construction

  1. external helix
  2. outer layer: silicone coated glass fabric
  3. inner layer: PTFE film
