Master-Clip TEFLON® H


  • extraction of corrosive media
  • extraction of solvents
  • chemical plants
  • paint mist extraction
  • paint, wood and paper industries
  • pharmaceutical industry
  • low pressure applications


  • excellent chemical resistance
  • PTFE is harmless for health
  • heat and cold resistant
  • excellent weather resistance
  • UV and ozone resistant
  • highly flexible
  • extremely compressible ca. 1:4
  • small bend radius
  • vibrationproof
  • outer hose wall of robust material
  • inner hose wall with non stick surface
  • optimum flow characteristics
  • external steel helix protects against abrasion
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
  • RoHS compliant
Chemical Resistance

Recommended Connecting Elements:

Index Number: 14.3

Product Description

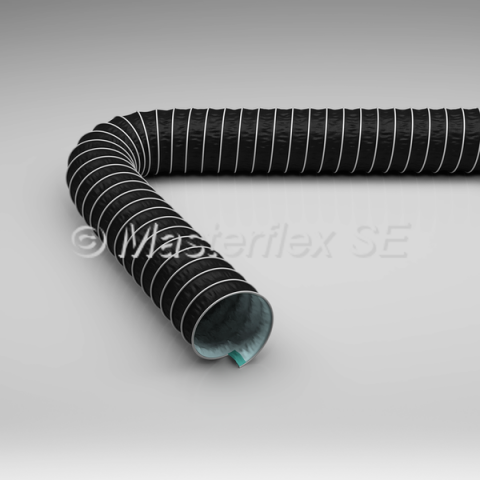

Suction and blower hose for corrosive media up to +175 °C


hose wall: inner layer: PTFE film, outer layer: Hypalon® coated polyester fabric

external helix: galvanised steel

Temperature Range

  • -40°C up to +175°C
  • intermittent to +190°C


  1. external helix
  2. outer layer: Hypalon® coated polyester fabric
  3. inner layer: PTFE film
