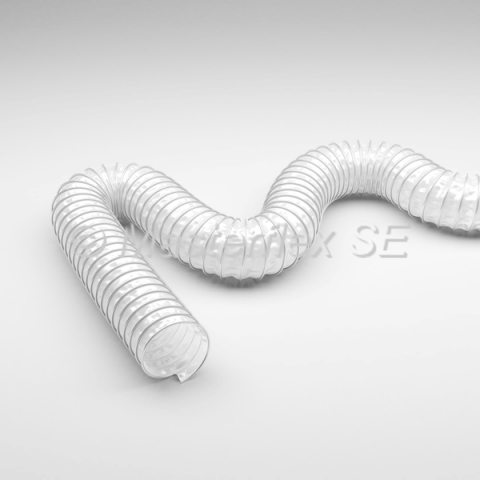

Master-Clip PE
Application
- low pressure suction plants for removal of asbestos fibres
- air conditioning/ventilation
- suction plants
- transporting and extracting of air
- low pressure applications
Properties
- environmentally friendly material
- environmentally friendly alternative to PVC hoses
- higher temperature resistance than PVC hoses
- good resistance to mechanical damage
- very robust
- highly flexible
- extremely compressible ca.1:6
- small bend radius
- free of plastizisers and halogens
- external steel helix protects against abrasion
- special clamping method guarantees high tensile strength between hose material and external helix
- acc.to TRBS 2153 (zone 1,21) suitable for non-combustible dusts and gases of low conductivity.Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
10.5
Product Description
suction/blower hose made from PE coated polyethylene fabric, environmentally friendly
Material
hose wall: polyethylene coated polyethylene fabric on both sides
external helix: galvanised steel
Temperature Range
- -40°C up to +85°C
- intermittent to +95°C
Construction
- external helix
- hose wall: polyethylene coated polyethylene fabric on both sides
